TW First Moped Build

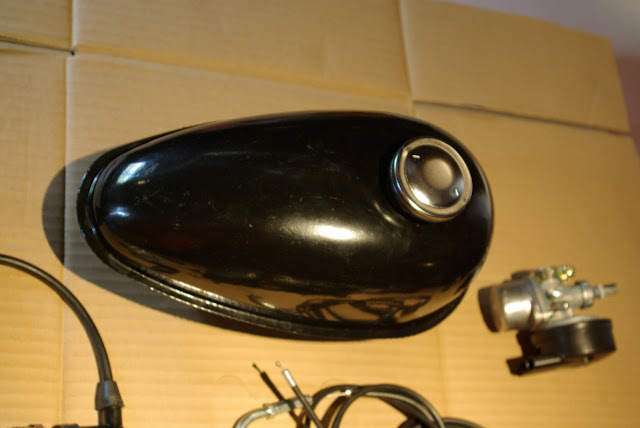

Gas Tank

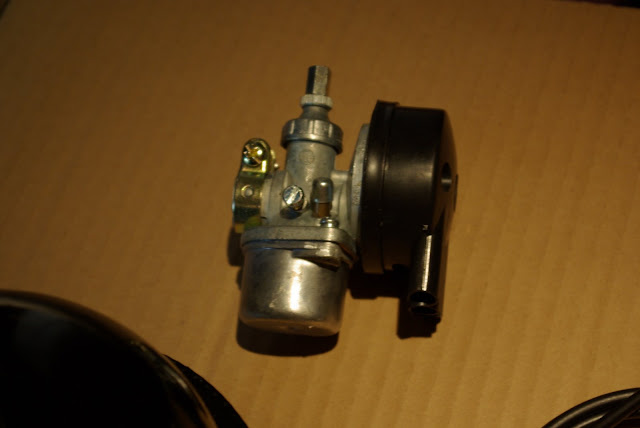

Carburetor

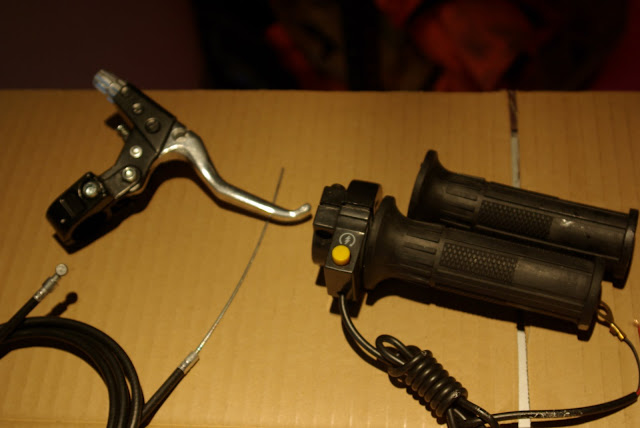

Clutch Lever & Throttle

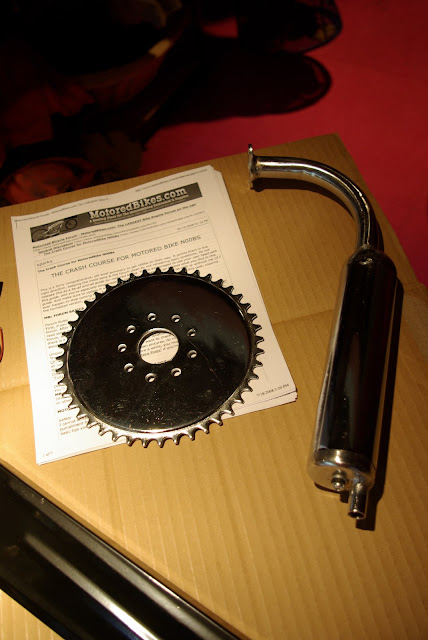

Exhaust Pipe & Drive Sprocket

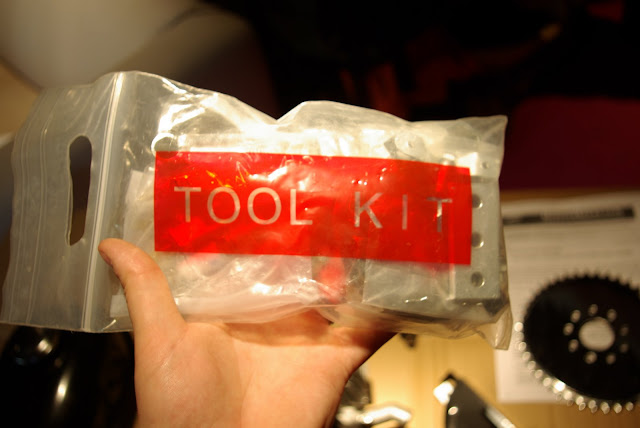

Tool Kit

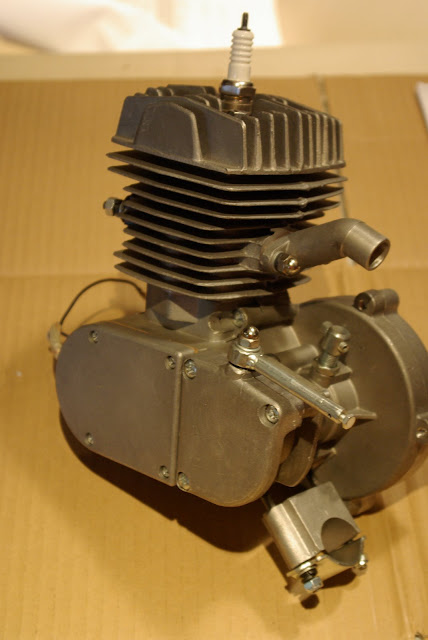

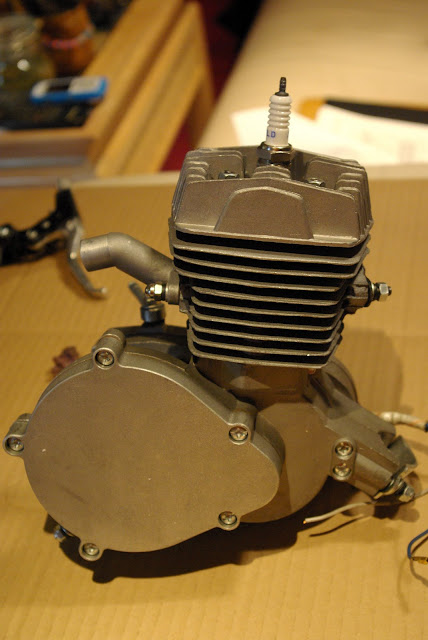

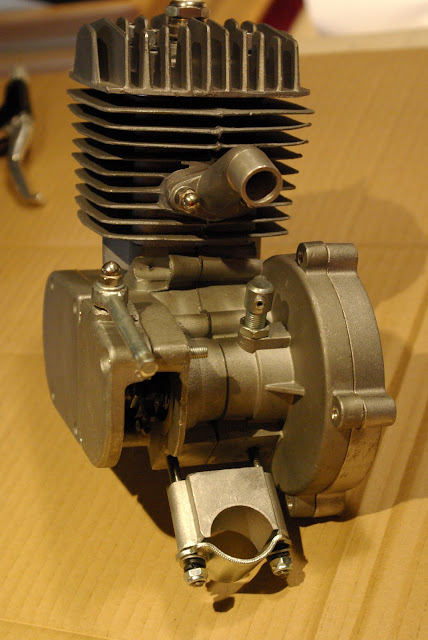

Fully Assembled Motor - Ready For Tear-Down
Intake Manifold
Clutch Cover

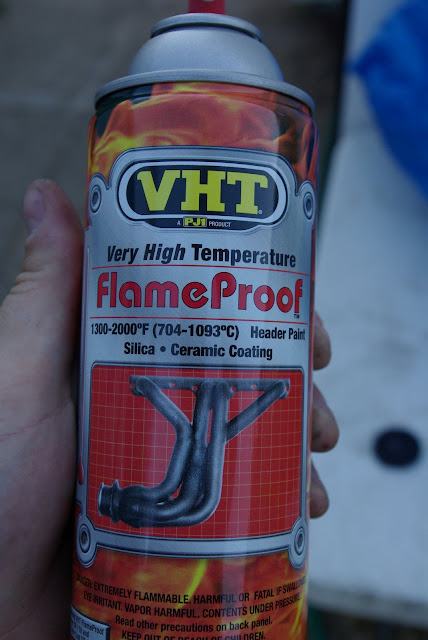

Getting Ready to Go Black

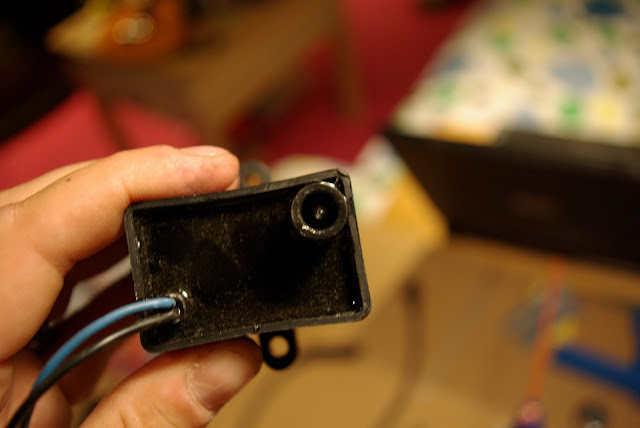

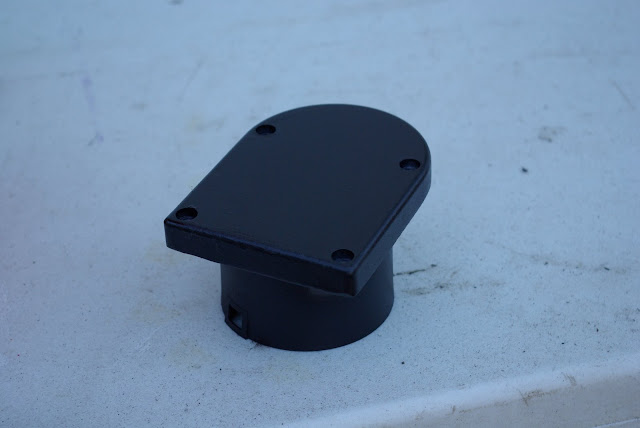

CDI Ignition Cover Painted
Clutch Cover Painted

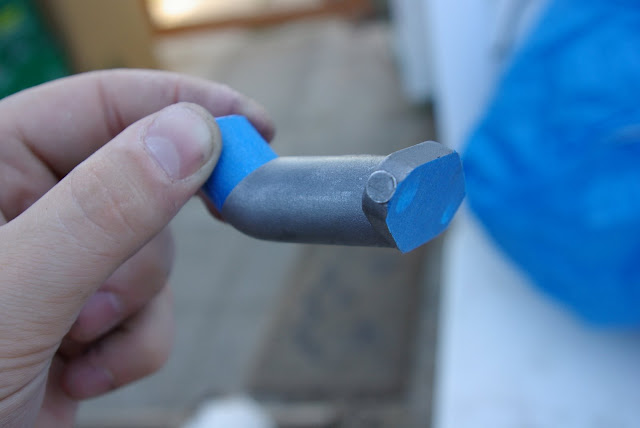

Intake Manifold Masked & Ready For Paint

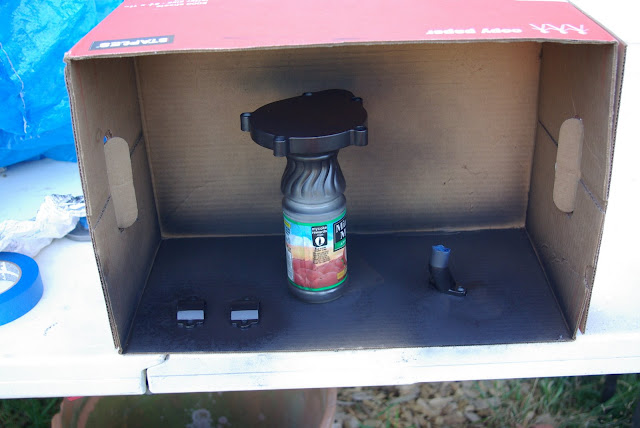

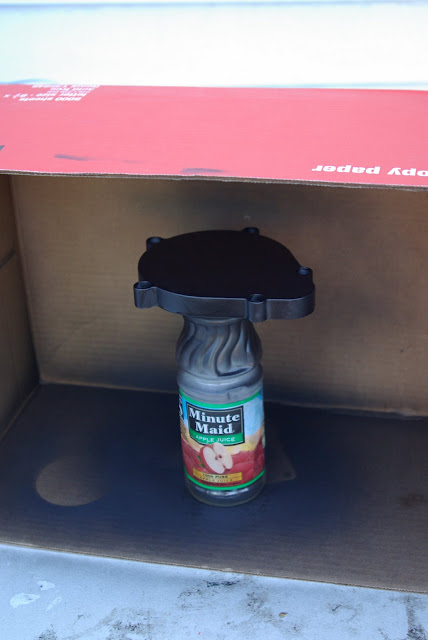

My “Paint Booth”

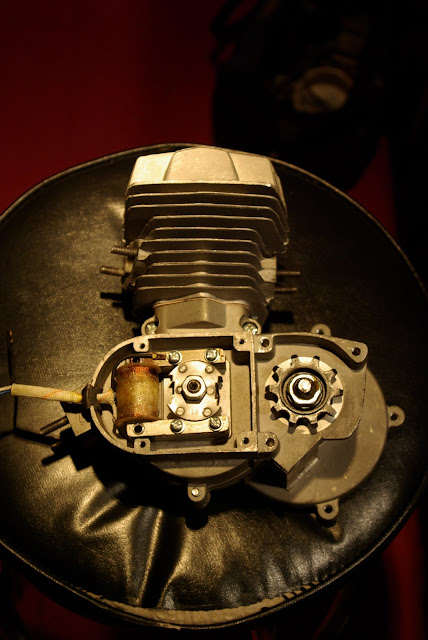

Motor With Covers Taken Off (Drive Side)

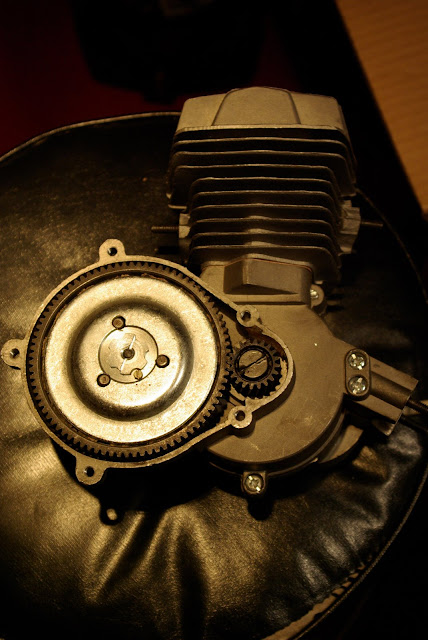

Motor With Covers Taken Off (Clutch Side)

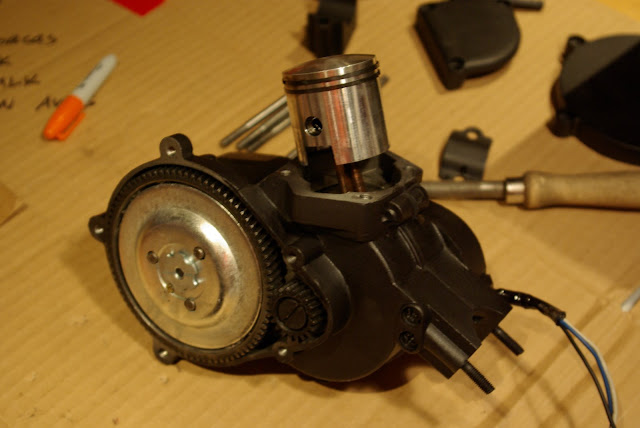

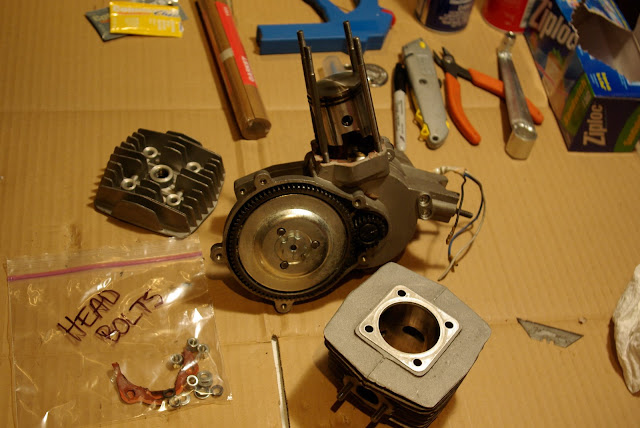

Head Taken Off

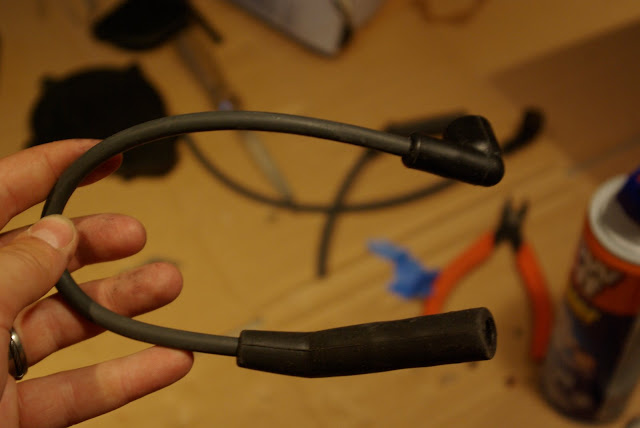

New Plug Wires - $2.00 @ Yard Sale

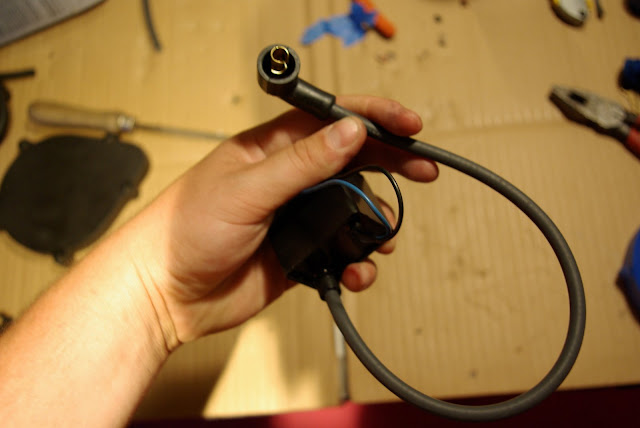

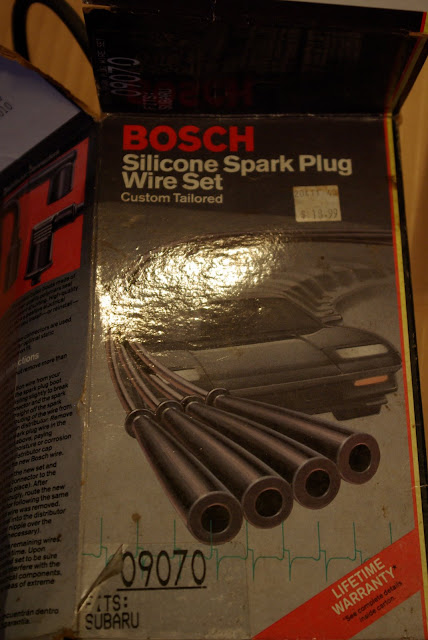

Bosch Plug Wire

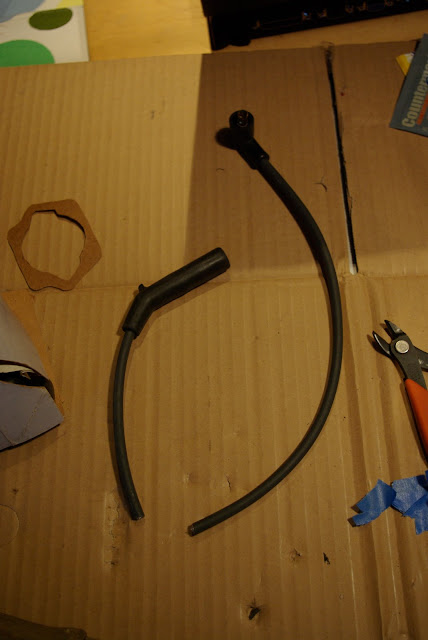

Plug Wire Cut & Ready to Install
Install Plug Wire Here
Plug Wire Installed! Looks Nice.

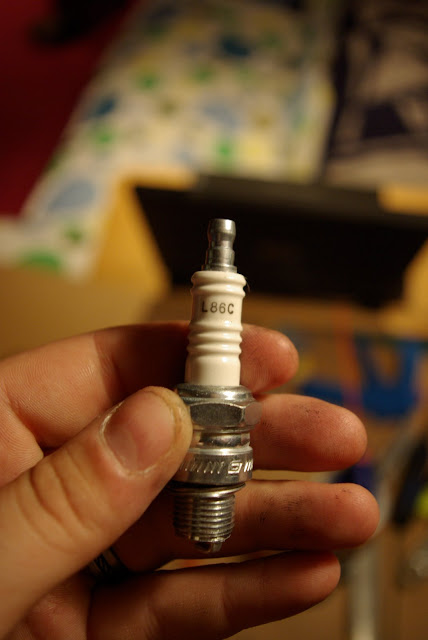

Takes This Kind of Plug Now

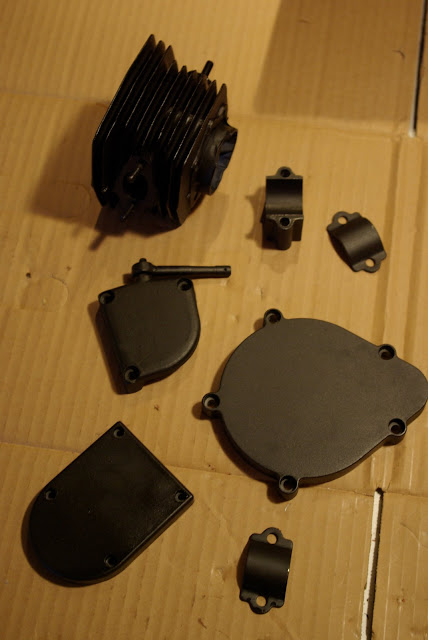

Engine Covers, Head & Motor Mounts Painted

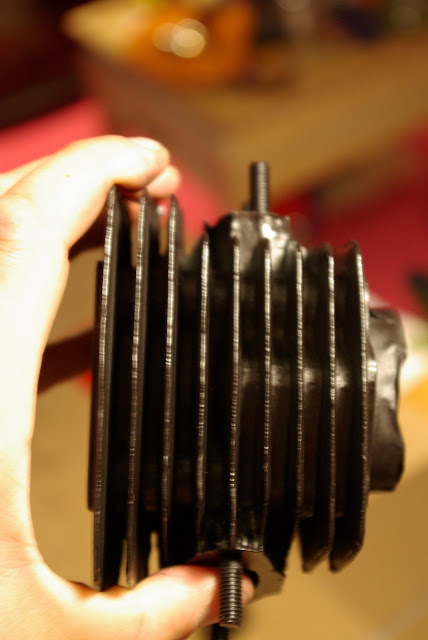

Closeup of Head
Engine Body Painted

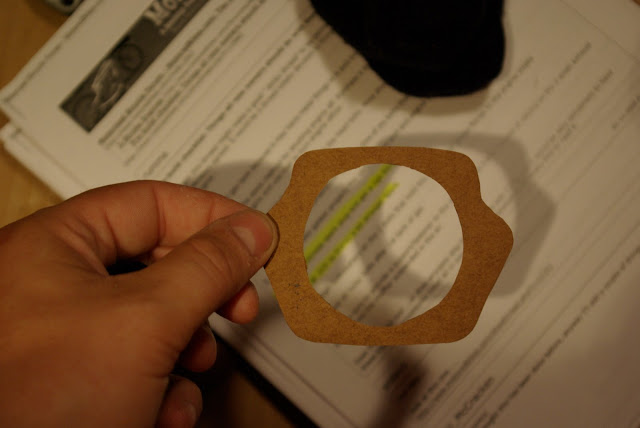

New Gasket Pressure Traced from Head

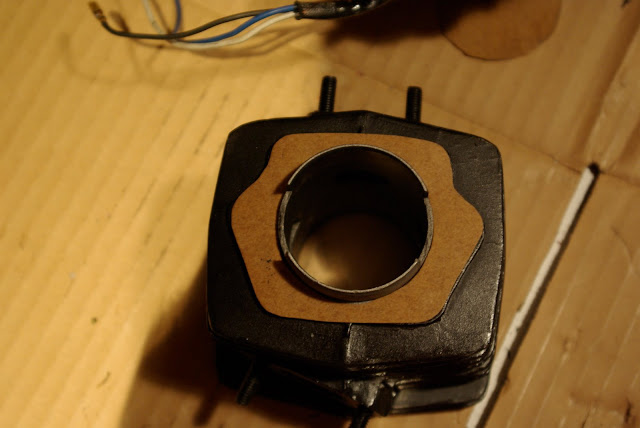

Need to Cut a Couple More Holes, But Looks Good.

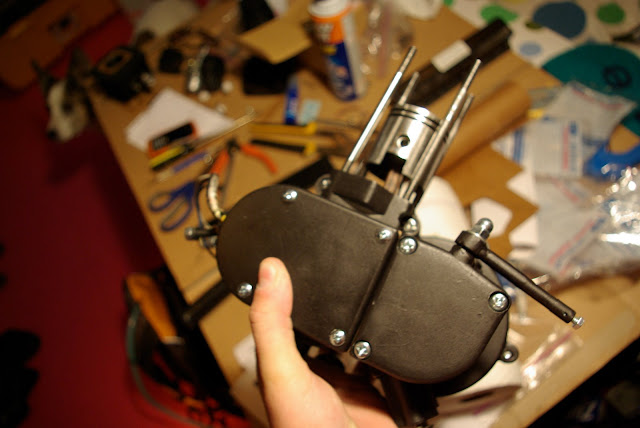

Engine being re-assembled - I have purchased all new nuts, bolts & studs.

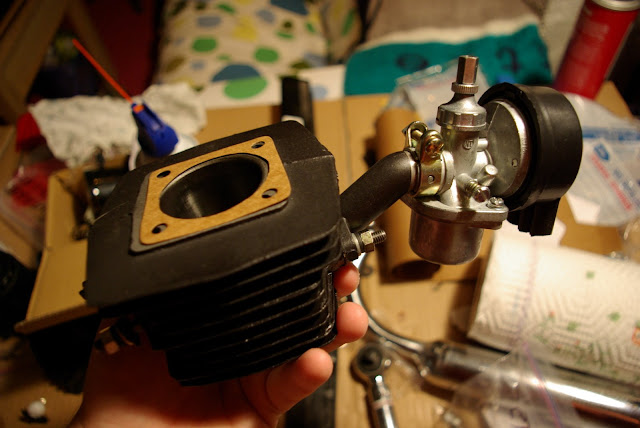

Intake/Head Assembly. Looking Good!

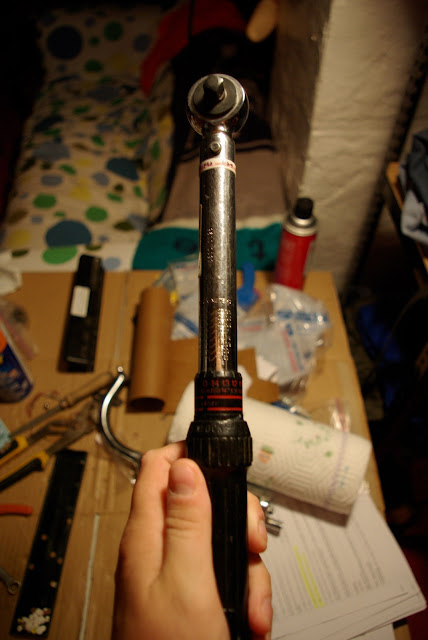

Torque Wrench - Doing it right.

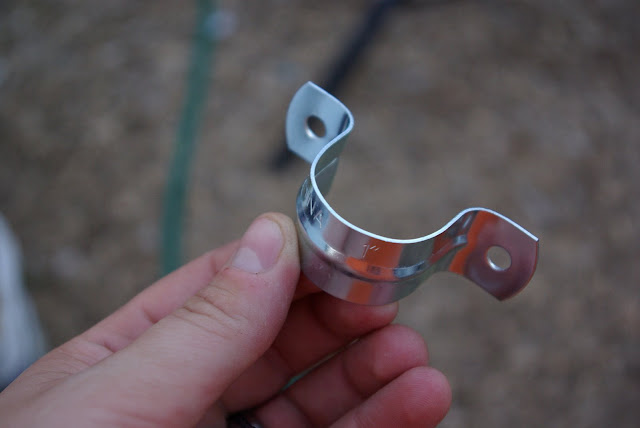

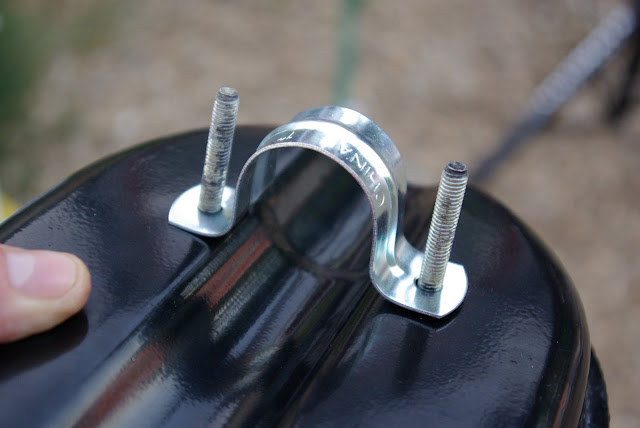

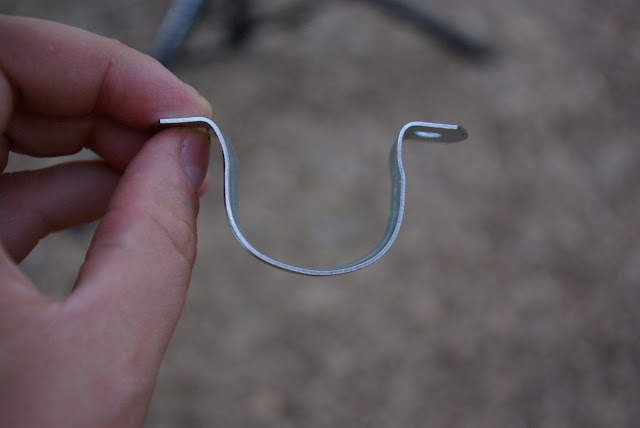

Standard Conduit Clamp
Fits Just Right

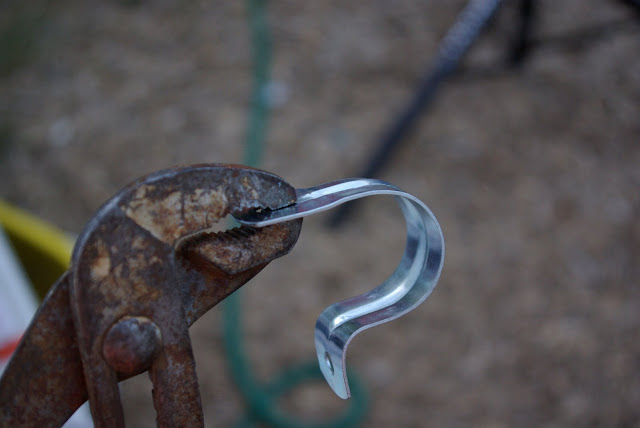

With a Little Bending...
It's perfect!

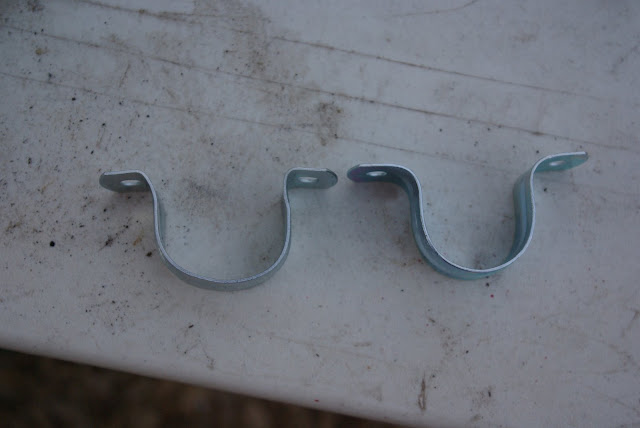

Comparison...

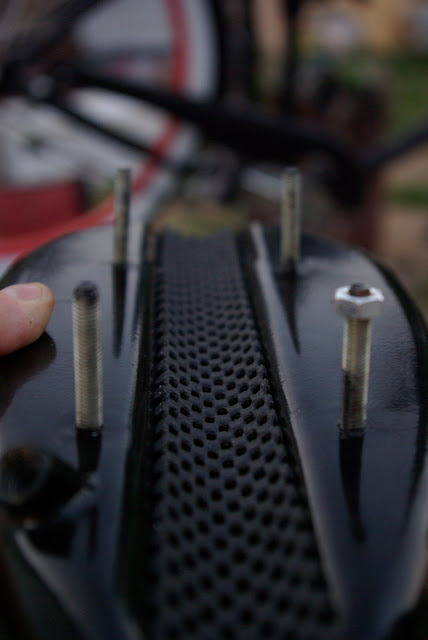

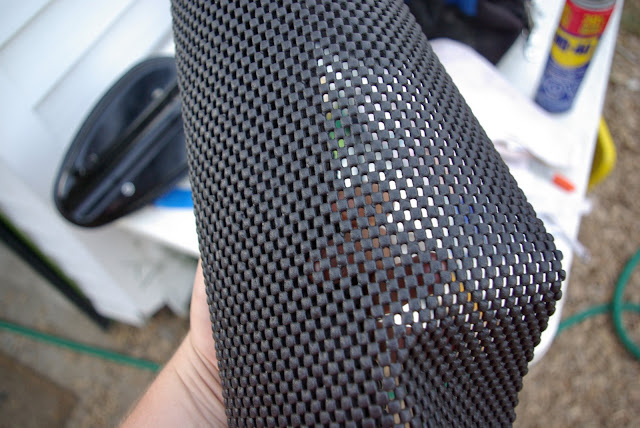

No-slip Rubber Stuff

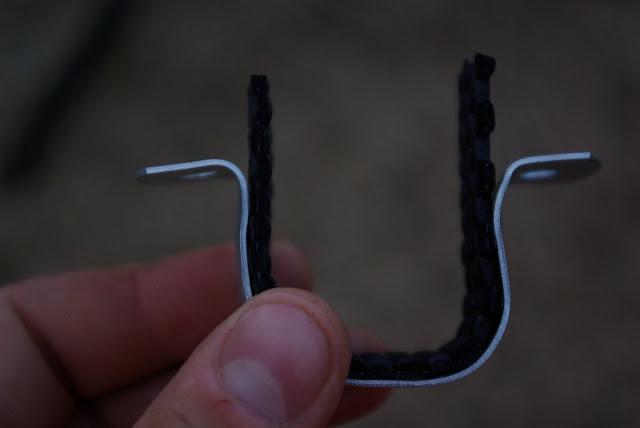

So as not to scratch the paint.
Holds the tank from slipping around and vibrating too much too!

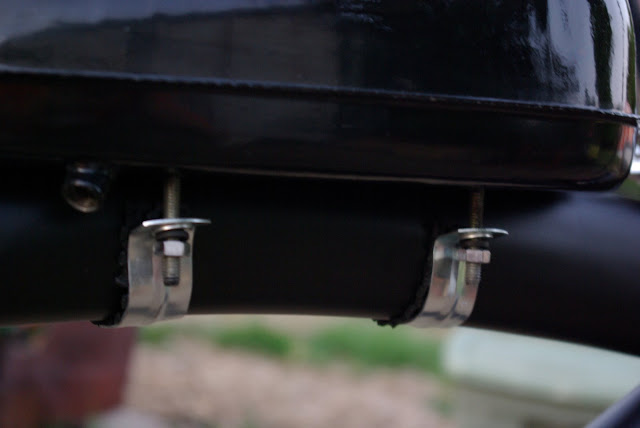

Mounted, Looking Good!

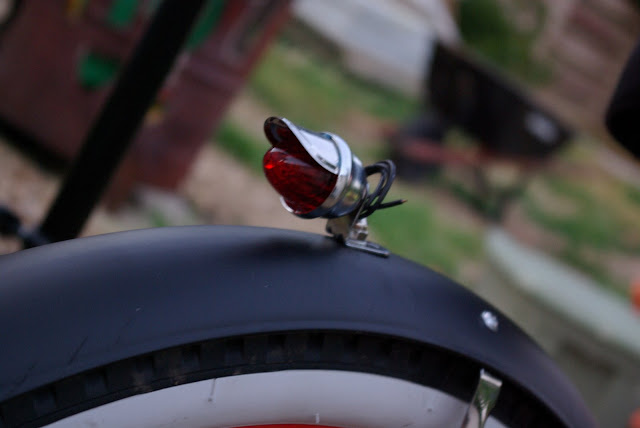

ooooo... Tail Light!

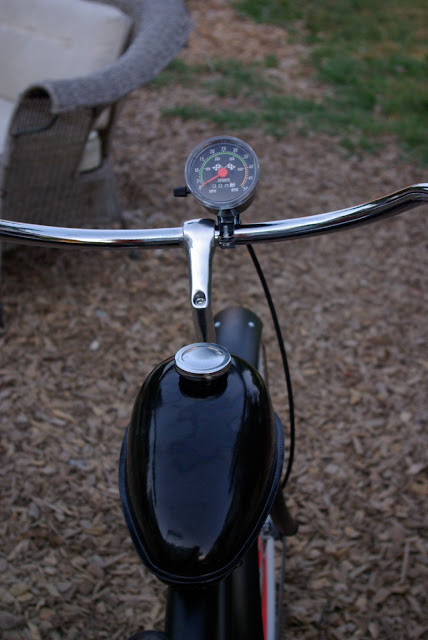

Speedometer Mounted and functional.

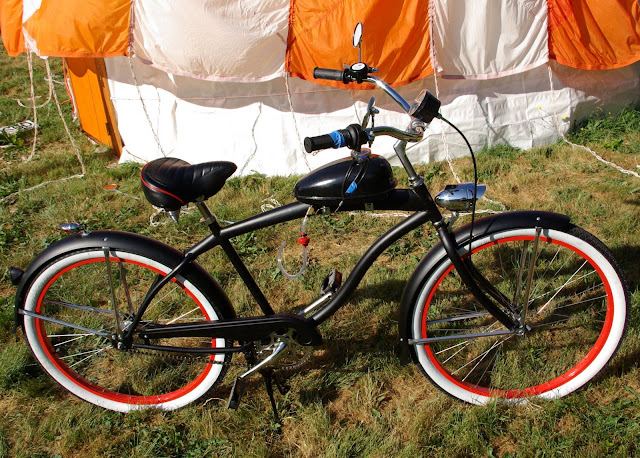

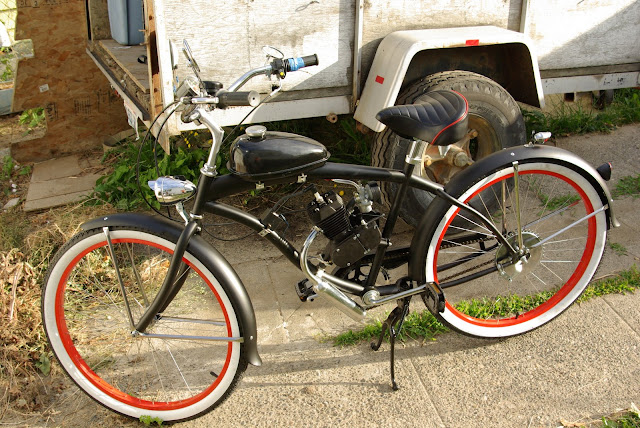

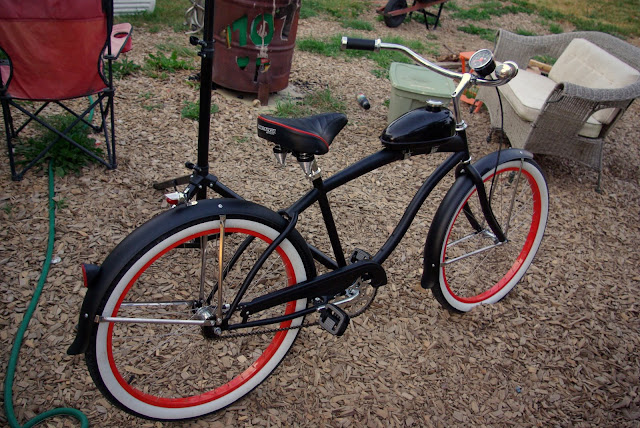

Beautiful, isn't she!?
Trying her out a bit. You can't help but feel cool on this thing.

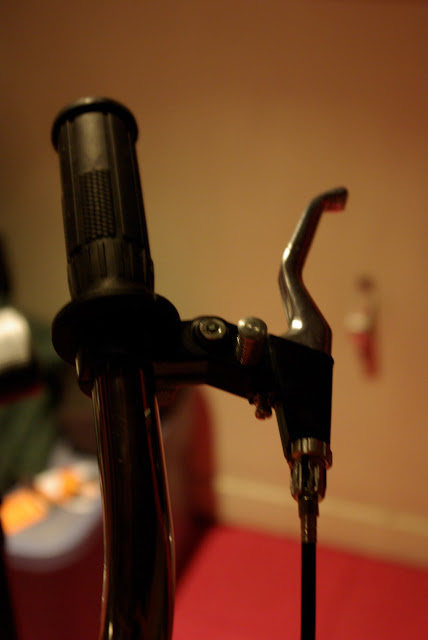

Clutch lever & Grip Mounted and cabled

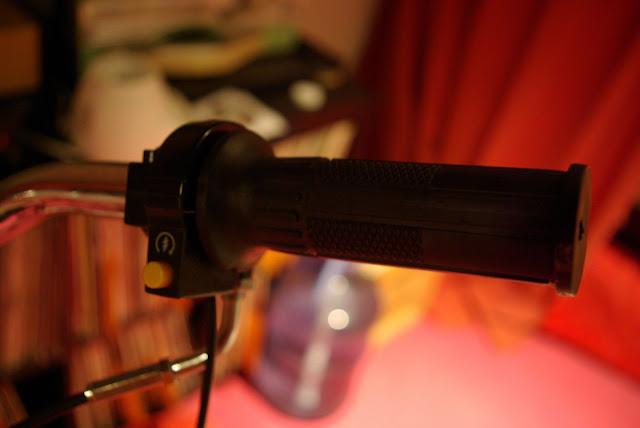

Throttle mounted & Cabled.

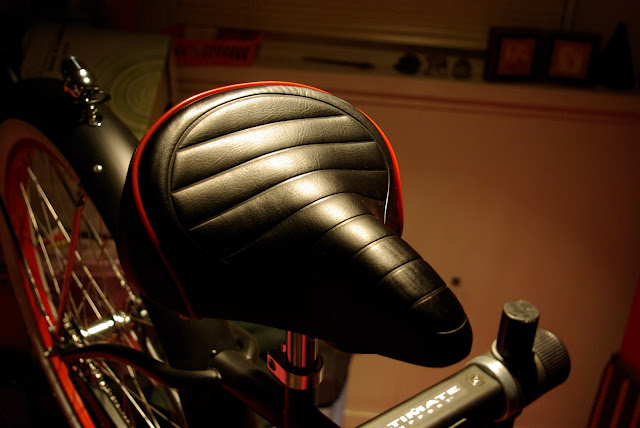

I love the red stripe on the seat. It really ties the bike together.

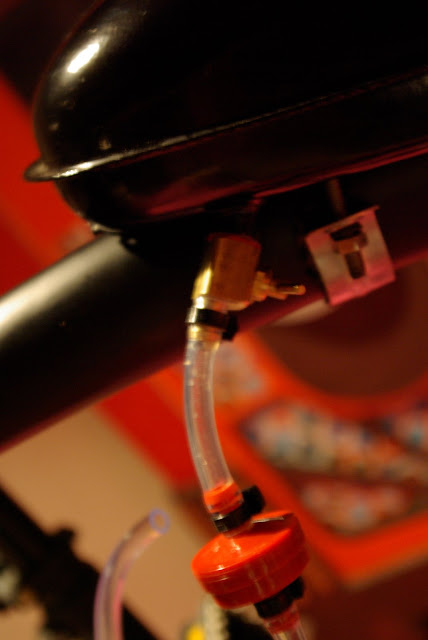

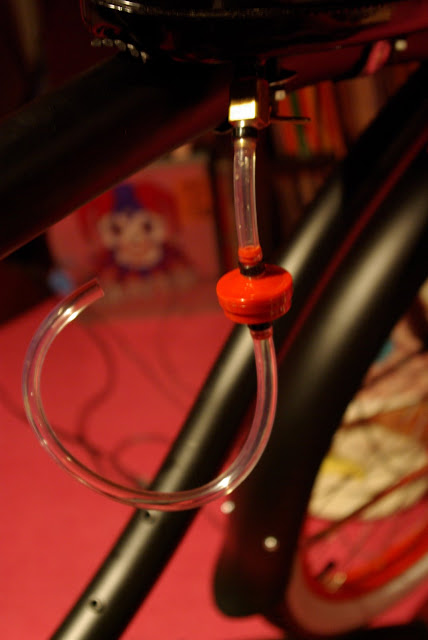

Fuel Peckock & Filter Mounted
Peckock closeup

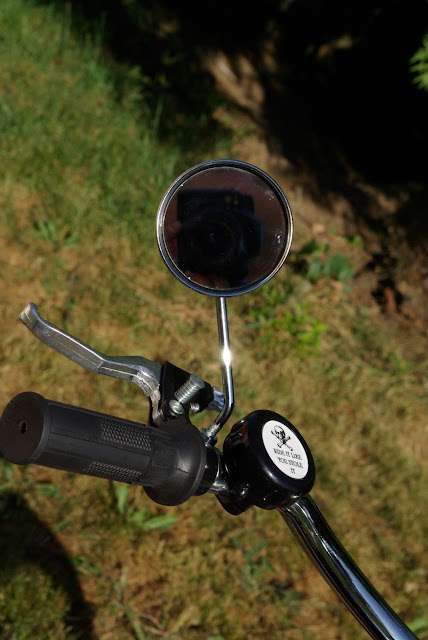

Mirrors mounted up and tested

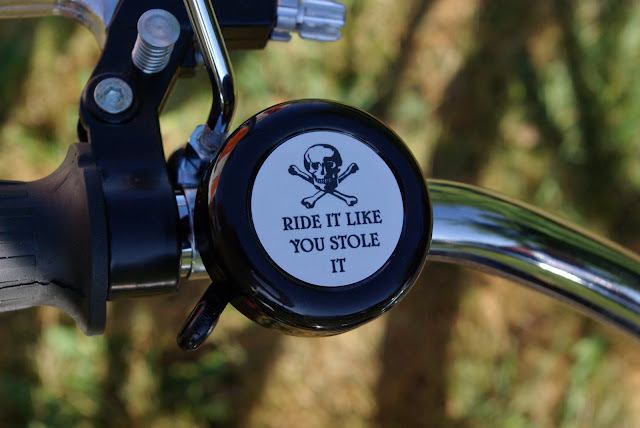

My new motto

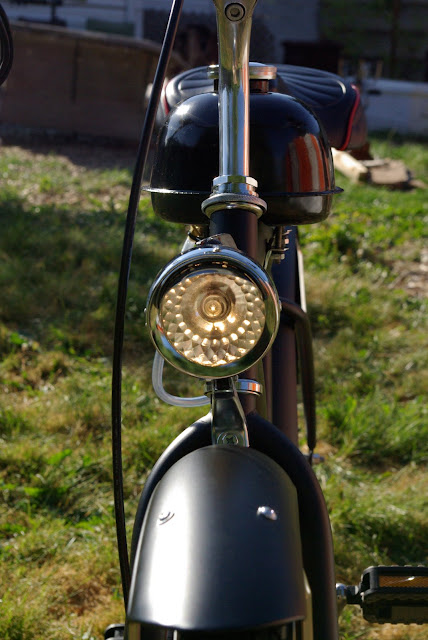

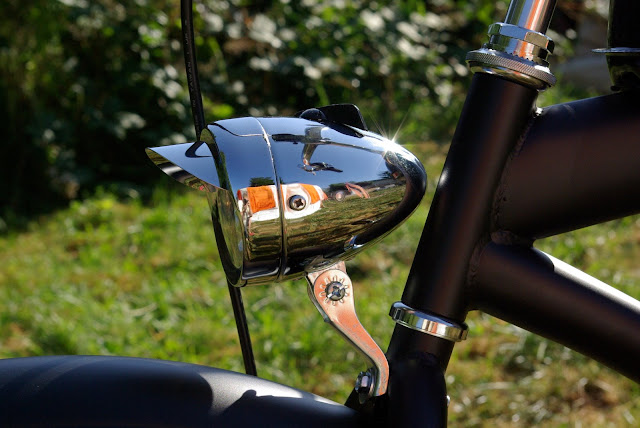

Look at that headlight shine!
It works too!

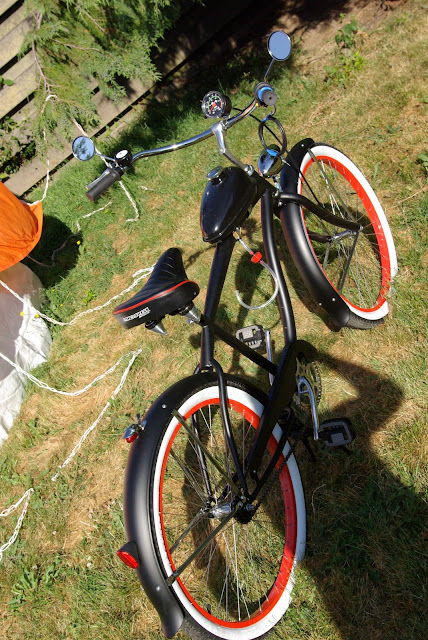

She's really taking shape
Viva La Pub-Crawler

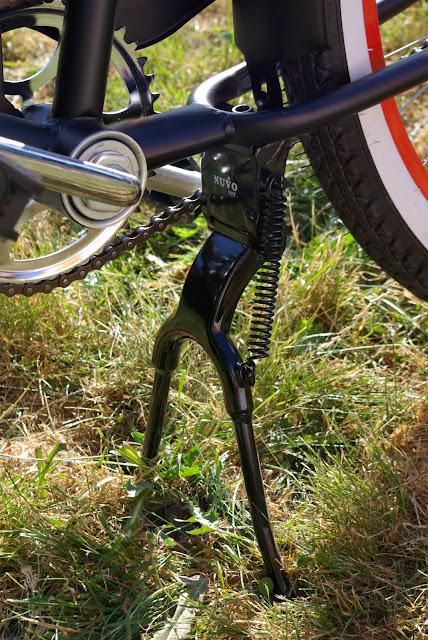

New reinforced double kick stand gets the rear wheel off the ground

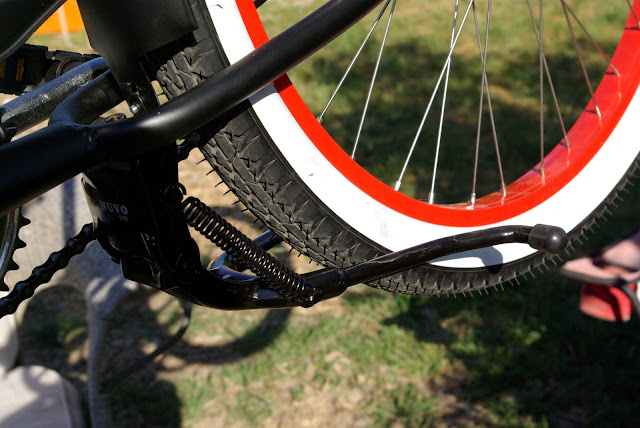

Folds out of the way just by rolling forward like a motorcycle
Look at that! Motor is mounted, exhaust put on. Only thing left is the chain which is one link too short and rubs on the fender :( ... it's always something.

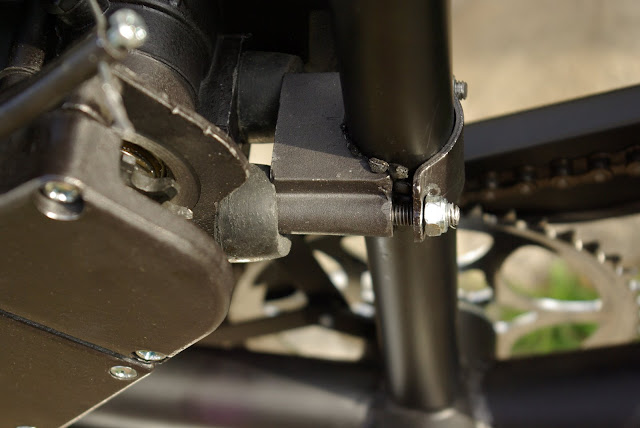

Custom front motor mount with mechanical isolator.
Custom rear motor mount with dual mechanical isolators.

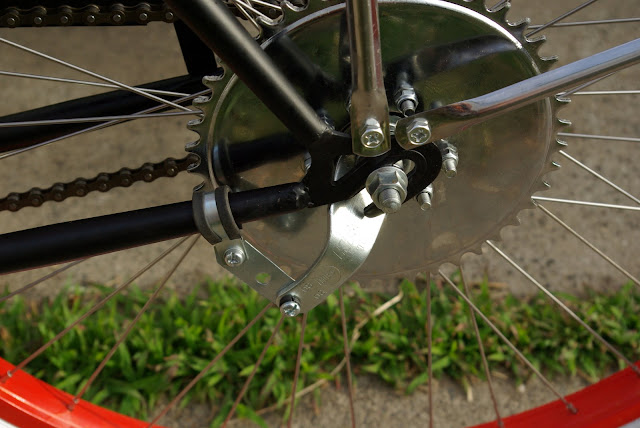

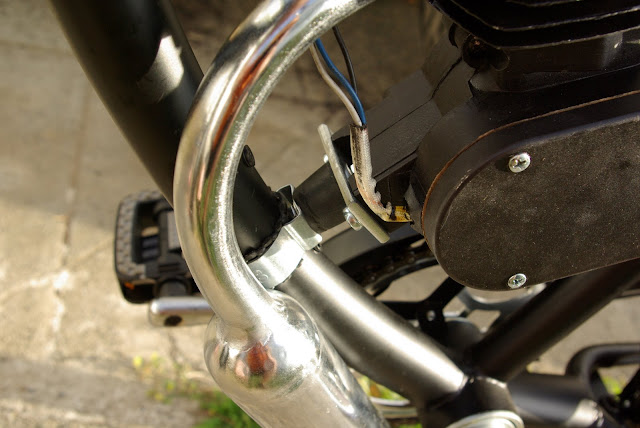

I had to re-bend the coaster brake lever and fabricate a custom linkage so that the drive sprocket bolts would clear it.

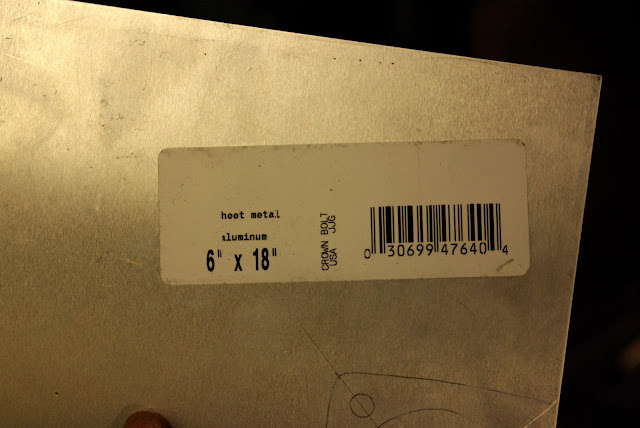

Aluminum sheet metal stock for new custom head gasket (was missing from factory)
Here in lies the problem. The piston was impacting the cylinder head because of the missing gasket.

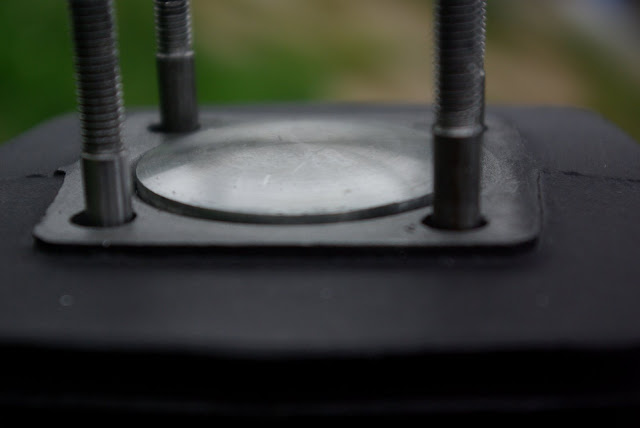

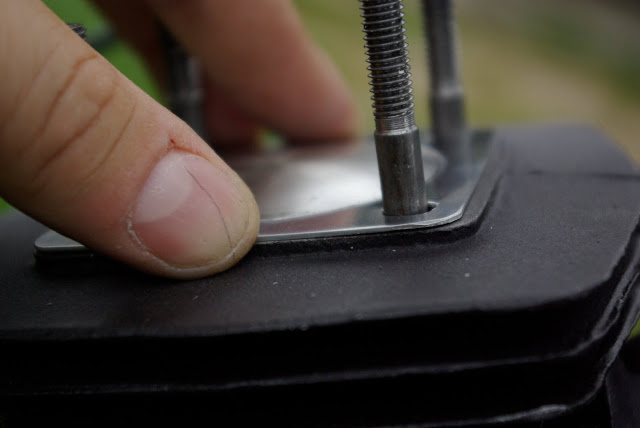

Wow! What a fit.

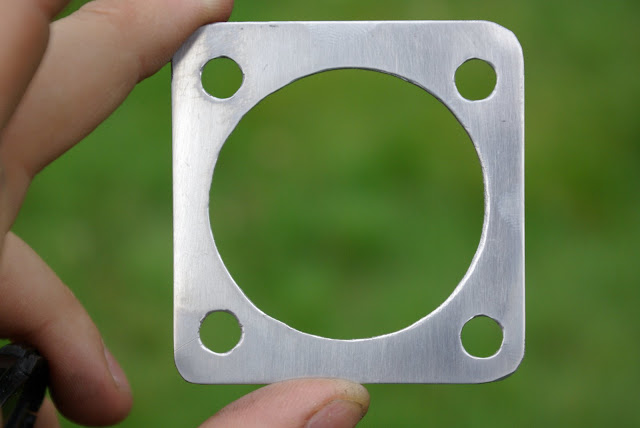

Here it is, one custom head gasket.
Old School Sepia Look
